A Guide to Airsoft Gearboxes
If you're into airsoft, getting the most out of your equipment means understanding the AEG
(Automatic Electric Gun) gearbox. The gearbox is the heart of your airsoft gun, converting
electrical energy into mechanical power to fire BBs. Let’s break down how this system works
and why it's important to understand.
What Is an Airsoft Gearbox?

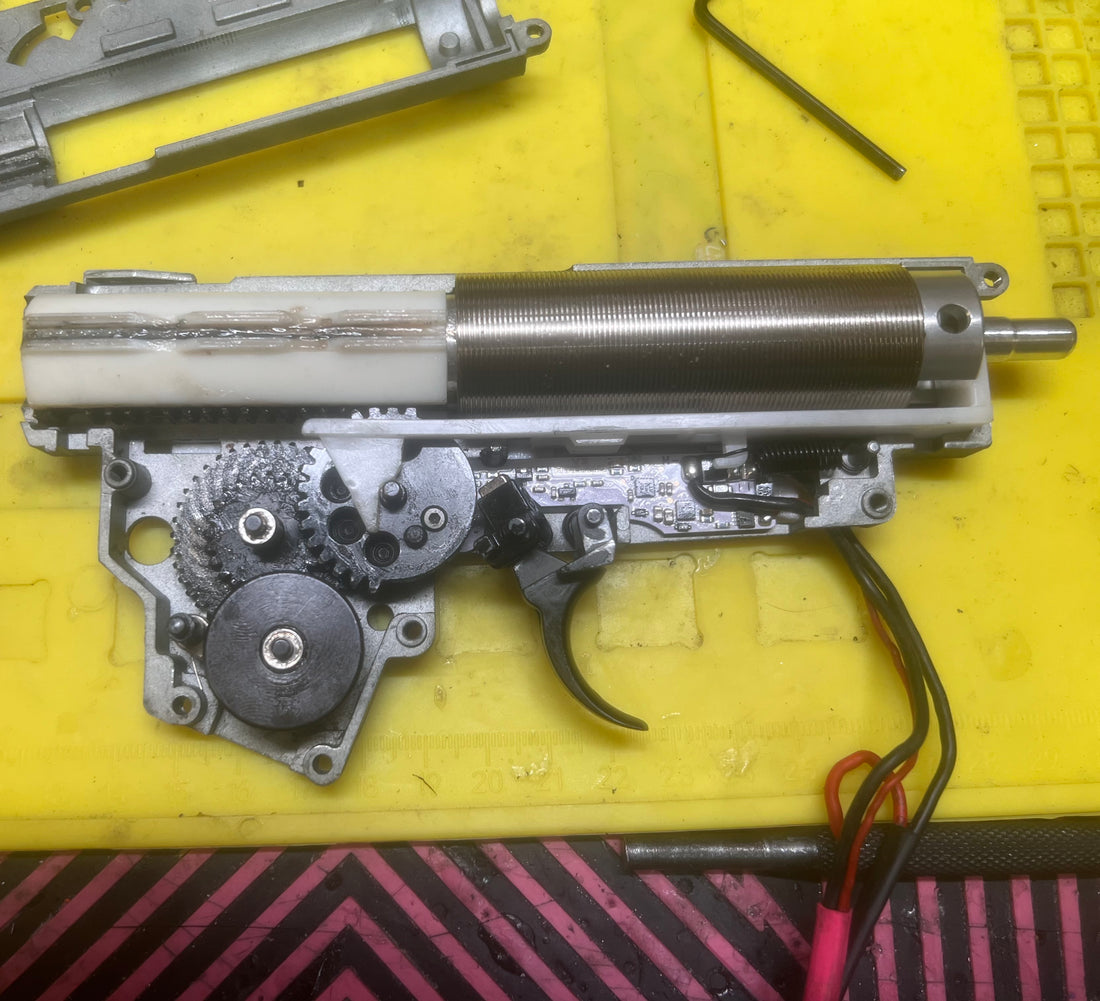

The gearbox is a mechanical system powered by a motor and battery. Its main job is to
compress a spring, creating air pressure that launches the BB. While there are different gearbox
models (like Version 2 and Version 3), they all work with the same basic process.
How the Gearbox Cycle Works
When you pull the trigger, it sets off a chain reaction that fires the BB. Here’s how it happens:
● Trigger and Motor Activation: Pulling the trigger completes an electrical circuit, sending power from the battery to the motor. The motor starts spinning and transfers energy to the bevel gear.
● Gear System: The bevel gear passes torque to the spur gear, which drives the sector gear. These gears amplify and control the motor’s energy efficiently.
● Spring Compression: The sector gear’s teeth engage with the piston, pulling it back to compress the spring. This step stores the energy needed to fire the BB.
● BB Loading: While the spring compresses, the sector gear also moves the tappet plate,
pulling the nozzle back. This allows a BB to load into the chamber. The nozzle then moves forward, sealing the chamber to prevent air loss.
● Firing: The sector gear releases the piston, and the compressed spring pushes it forward rapidly. The piston forces air through the cylinder head and nozzle, creating the pressure
needed to launch the BB.
● Air Compression and Spin: As the BB exits the barrel, the hop-up unit applies backspin.
This spin stabilizes the BB in flight, improving accuracy and range.
● Resetting: The gears continue rotating, resetting the piston and tappet plate to prepare for the next shot. The anti-reversal latch prevents the gears from spinning backward, keeping the system running smoothly.
This entire process happens in milliseconds, allowing for semi-automatic or fully automatic fire,
depending on your gun’s setup.
Why Understanding Your Gearbox Matters
Understanding how your gearbox works isn't just about being technical—it helps you take better
care of your gear and improve your game. Here's how knowing your gearbox can help:
Fix Problems Faster
Airsoft guns can experience problems like jams, misfires, or strange noises. If you know how your gearbox works, you'll be able to identify and fix these issues more quickly, saving time and money.
Upgrading for Optimized Performance
When upgrading your airsoft gun, it’s important to select the right parts for the job. Whether you want to boost speed, accuracy, or reliability, understanding your gearbox helps you choose the best upgrades for your needs. The right motor, gears, or hop-up can make a big difference in your gun’s performance.
The Importance of Regular Maintenance
Maintaining your gearbox is crucial for keeping it running smoothly and ensuring that it performs at its best. The gearbox has many moving parts, and over time, wear and tear can cause issues. Regular maintenance helps to:
● Extend Lifespan: Proper maintenance, like cleaning and lubrication, reduces friction and wear, which helps your gearbox last longer.
● Prevent Performance Issues: Keeping your gearbox in good shape reduces the chances of problems like misfires or inconsistent firing.
● Preserve Upgrades: Regular maintenance ensures that any upgrades you've made, such as a new motor or reinforced gears, continue to work effectively.
By keeping your gearbox well-maintained, you'll ensure that it performs at its peak for years to come, giving you the best experience on the field.
Final Thoughts
Your airsoft gearbox is an impressive piece of engineering, combining electrical and mechanical systems to power your gun. By understanding how it works and committing to regular maintenance, you’ll keep your gear running smoothly and performing at its best. Whether you're playing casually or competitively, a little attention to your gearbox goes a long way in ensuring your gun is always ready to perform. Regular care and maintenance are the keys to making sure you get the most out of your airsoft equipment!
